REAL VALUE.
quality made in europe.
GSP collectors:
best price & best quality
quality made in europe.
best price & best quality
the gsp collector family consists of high performance tube collectors. they impress with their high quality, high power output and production made in europe.
we use only the best materials from well known european manufacturers. for this reason we can guarantee a long life, big power output and high temperature resistance.
MADE IN EUROPE.
quality made in europe is a great sales pitch and beneficial for you. you can rely on our quality, because we not only promise a long life, we guarantee it.
all products are subject to our 10 year warranty, so that you can be relaxed.
BE FLEXIBLE!
we can deliver worldwide by air or by sea.
if you are a customer in europe we have short delivery routes. it's not only good for the environment, we can also deliver goods in time when you need it!
fast delivery from Europe to Europe is very fast and cheap. a truck from our factory can reach any point in europe in a maximum of 6 workdays.
GSP offers complete, innovative and tested systems. We focus on renewable energy systems with solar thermal systems, photovoltaic and solid fuel technology. All our systems have been tested by independent test houses and are of superior quality that gives you the edge over competition.

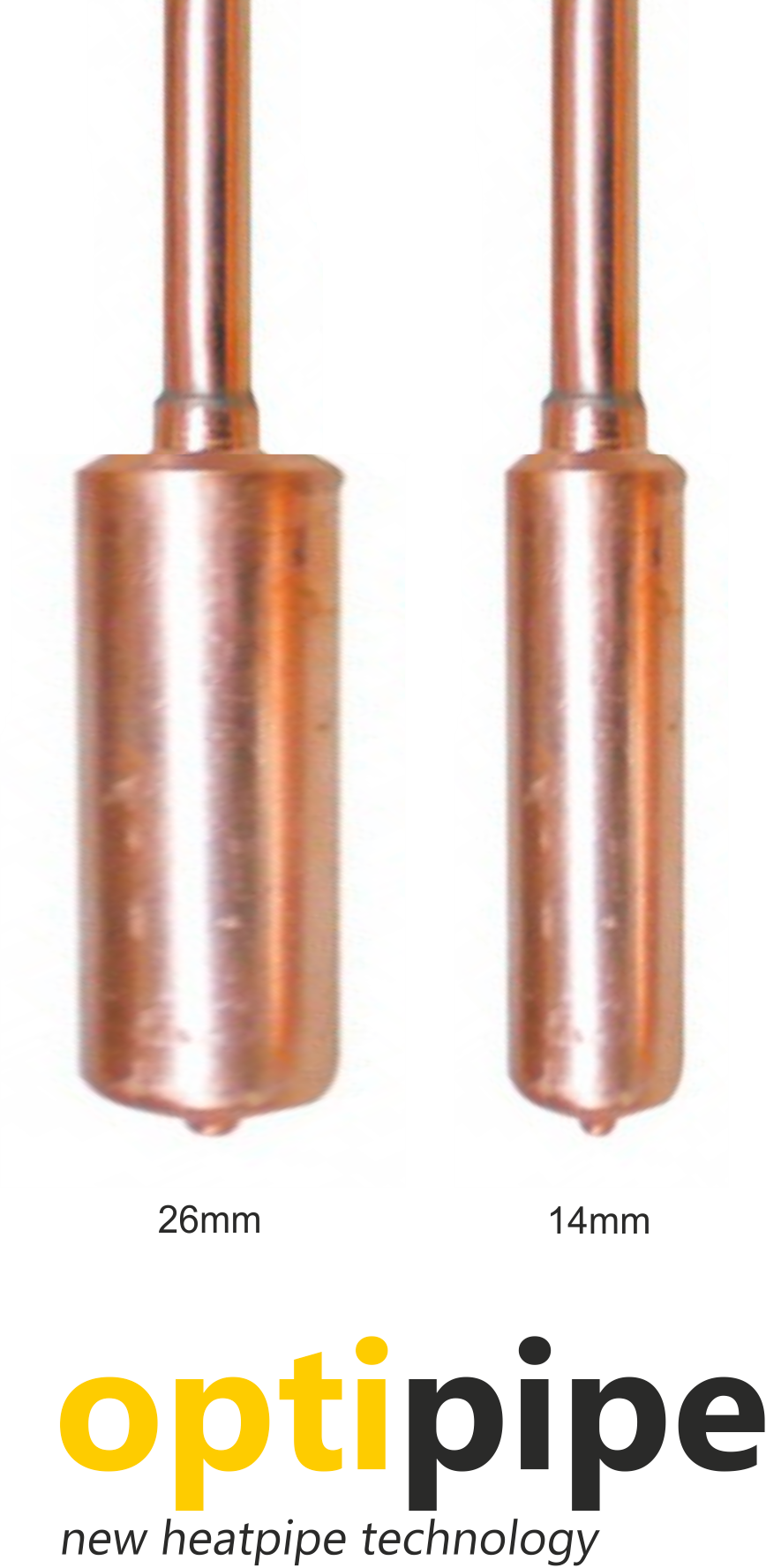

the gsp optipipe is available with a heatpipe header of 14mm and 26mm diameter.

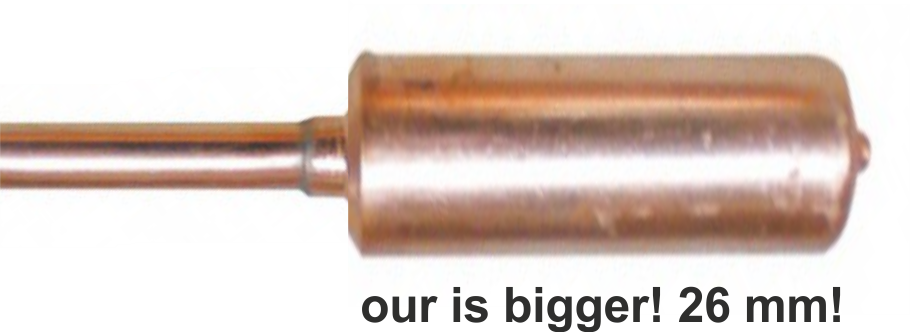

only our optitube premium collector is made with the biggest heatpipe header on the market with 26mm for maximum power output. this is very useful in your marketing to get new clients and offer somethink different than your competitioner.
all gsp optipies use a special heat transferring liquid that is innovated by gsp.
on the one hand it is anti-freeze-safe until -50°C., and on the other hand it is very fast in heat transfer.
the gsp heatpipe can reach up to 30% higher temperature and is up to 50% faster then the most other heatpipes on the market.
the special form of the gsp optipipe supports best performance and high efficiency.
the copper is used from a famous brand and one of the biggest companys in europe with a very high quality and purity.
our gsp optipipe is made for long life and extreme temperatures.

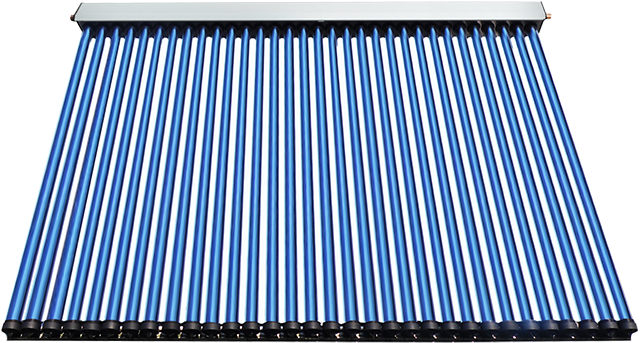

the optitube collector family is available with 12, 15, 18, 20, 24 and 30 high performance vacuum tubes.
| specifications: | |
| manifold material: | 2mm powder coated aluminium in ral 9006 |
| max. pressure: | 6-9 bar |
| test pressure: | 15 bar |
| connection: | 22mm copper |
| insulation: | special high temperature wool, which can handle up to 400°C. |
| installation angle: | 15-90° |
| vaccum tube: | 58x1800x1,8mm ALN/AIN-SS/CU |
| heatpipe: | 14mm copper header |
| warranty: | 10 years |
the optitube premium collector family is available with 12, 15, 18, 20, 24 and 30 high performance vacuum tubes.
our optitube premium collector is made with the biggest heatpipe header on the market with 26mm diameter for maximum power output.
| specifications: | |
| manifold material: | 2mm powder coated aluminium in ral 9006 |
| max. pressure: | 6-9 bar |
| test pressure: | 15 bar |
| connection: | 22mm copper |
| insulation: | special high temperature wool, which can handle up to 400°C. |
| installation angle: | 15-90° |
| vaccum tube: | 58x1800x1,8mm ALN/AIN-SS/CU |
| heatpipe: | 14mm copper header |
| warranty: | 10 years |

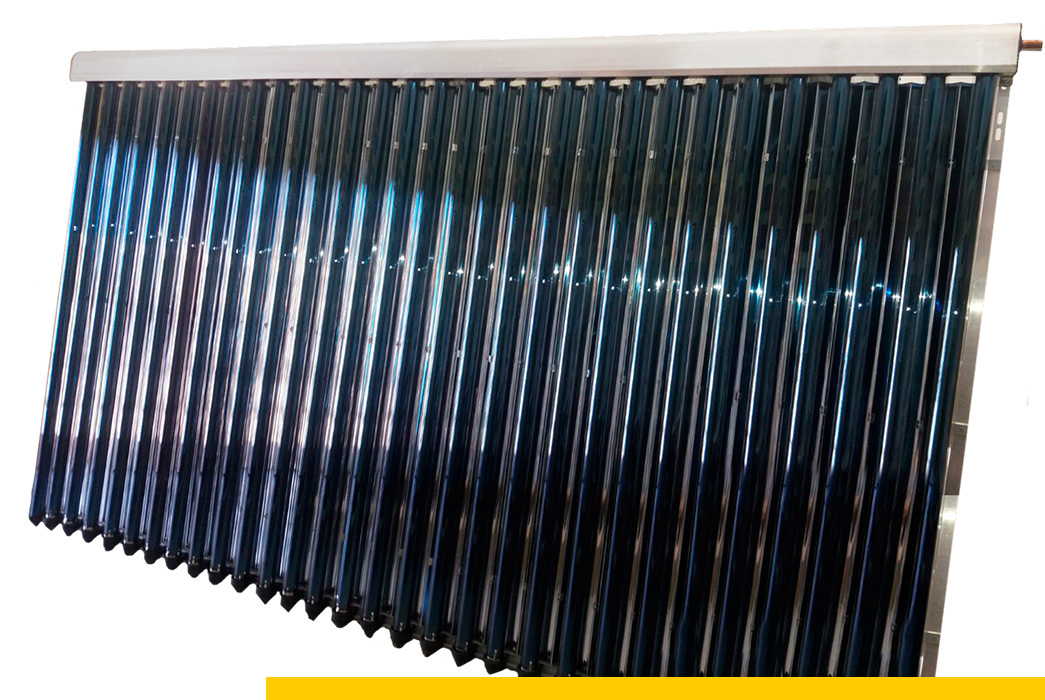

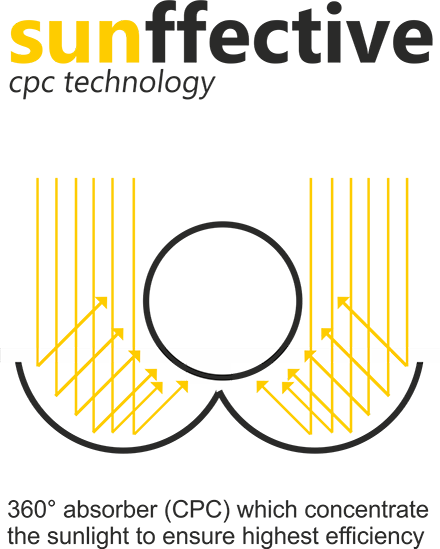

the sunffective cpc from gsp is the worlds biggest cpc collector with heatpipe technology and the one with the biggest power output.
the collector is available with 8 to 30 tubes. the 30 tube collector is about 6,7 qm big. the secret of the high power output is the high quality of the used components, like the high-gloss polished cpc reflector made in germany or the special liquid in the heatpipe that is innovated by gsp. on the one hand it is anti-freeze-safe until -50°C., and on the other hand it is very fast in heat transfer. the gsp heatpipe can reach up to 30% higher temperature and is up to 50% faster then the most other heatpipes on the market.
the collector and all components are made by european known favorite brands and build for high temperature and long life.
| specifications: | |
| manifold material: | 2mm powder coated aluminium in ral 9006 |
| max. pressure: | 6-9 bar |
| test pressure: | 15 bar |
| connection: | 22mm copper |
| insulation: | special high temperature wool, which can handle up to 500°C. |
| installation angle: | 15-90° |
| vaccum tube: | 58x1800x1,8mm ALN/AIN-SS/CU |
| heatpipe: | 14mm copper header |
| warranty: | 10 years |
| reflectors: | high-gloss polished cpc reflector on the complete back of the tube |
the gsp advantage: know-how made in germany.
All GSP products are manufactured according to german quality standards. GSP employs german development engineers who leave their mark on our products to bring our technology forward to reach outstanding quality and position in the market.
GSP can guarantee high quality for a long product life.
we are your partner even in 10 years.
Be sure of quality and sleep well that is something that you can do if you are buying products from GSP. We as a europen company have the same idea about quality and life time like you.
